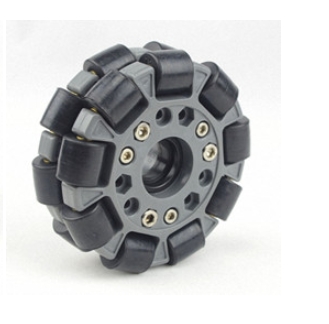

(4 inch) 100mm Double Plastic Omni Wheel basic 14049 features:

The 100mm (4 Inch) Plastic Omni Wheel: Unmatched Versatility and Durability for Your Mobile Robot Projects

In the dynamic world of robotics, achieving smooth, omnidirectional movement is crucial. The 100mm (4 inch) plastic omni wheel

 stands out as a robust solution designed to provide easy 360° maneuverability with both rotational and sideways capabilities.

 Engineered for durability and performance, this double-row omni wheel is an excellent choice for a variety of applications, including

 mounting on a 3WD Triangular 100mm Omni wheel mobile robot kit.

Key Features:

Omni direction movement and rotation

Easily direction control and tracking

Make turning fast

Unique fixed orientation

Simple & stable mounting options

Superior load stability

Compatible Hubs:

6mm Hub 18007

8mm Hub 18008

10mm Hub 18009

12mm Hub 18010

16mm Hub 18012

12mm Key Hub 18017

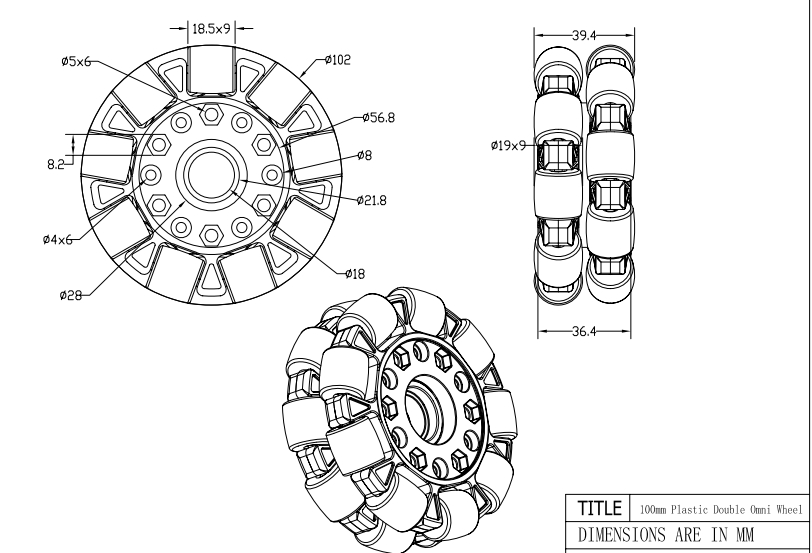

Specifications:

Diameter:4 inches(100mm)

Axial width:16mm

Number of plate:2

Number of roller: 18

Body material: Nylon

Roller material: Rubber

Roller bearing material: Brass tube

Roller diameter:19mm

Net weight:290g

Load capacity:20kg

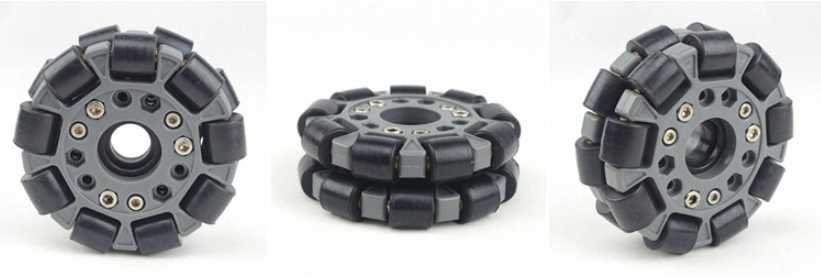

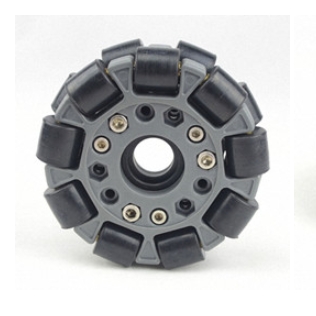

 (4 inch) 100mm Double Plastic Omni Wheel basic 14049 without bearing roller pictures as below:

What are the advantages and disadvantages of the Omni wheel?

The advantages of the Mecanum wheel and the omnidirectional wheel are flexibility and convenience, and the disadvantage is expensive. The omnidirectional wheel, as the name suggests,

 can move in any direction, at any angle, and in any direction. mecanum wheel these rollers having an axis of rotation at 45° to the plane parallel to the axis of rotation of the wheel.
