127mm Aluminum Single Omni wheel for Ball Balance Ballbot 14210 features:

127mm Aluminum single Omni wheel for ball balance ballbot 14210

The 127mm Aluminum Single Omni wheel for ball balance ballbot 14210 is designed for ballbot and balance bot application. it runs smoother than

other double omni wheel, it composed by 6 large roller and 6 small rollermeanwhile,the special hubs we designed are compatible with the wheel, 8mm( no key), 10mm, 12mm,14mm,16mm diameter available for your choice.

Specifications:

Diameter：127mm

Thickness：28mm

Body Material: Aluminum Alloy

Big roller number：6PCS

The small roller number：6PCS

Net Weight：500g

Load Capacity:：20kg

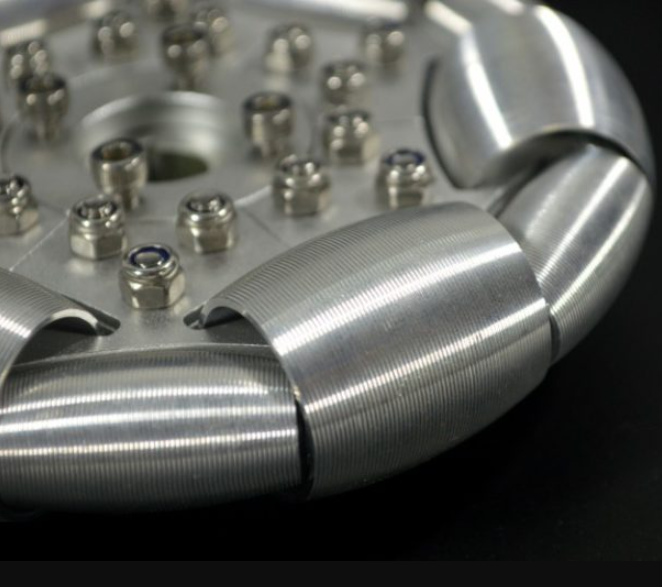

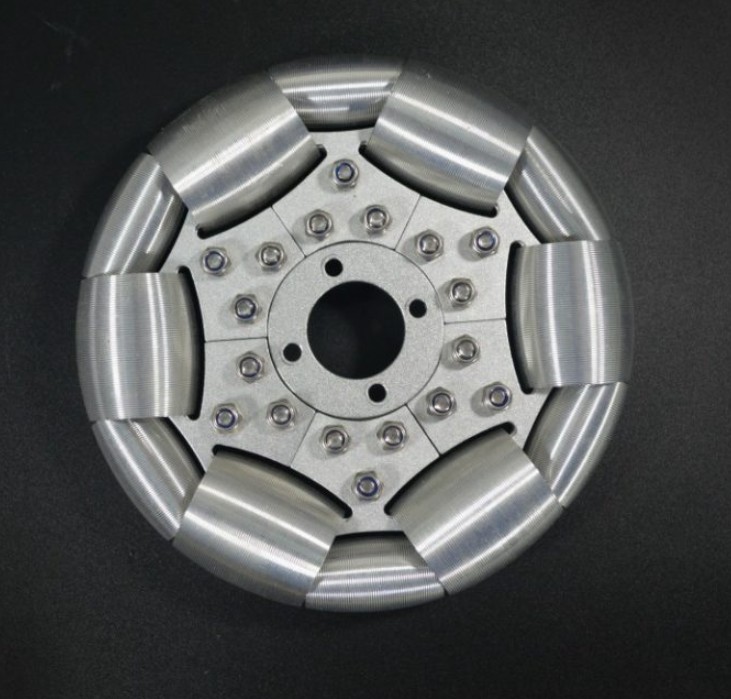

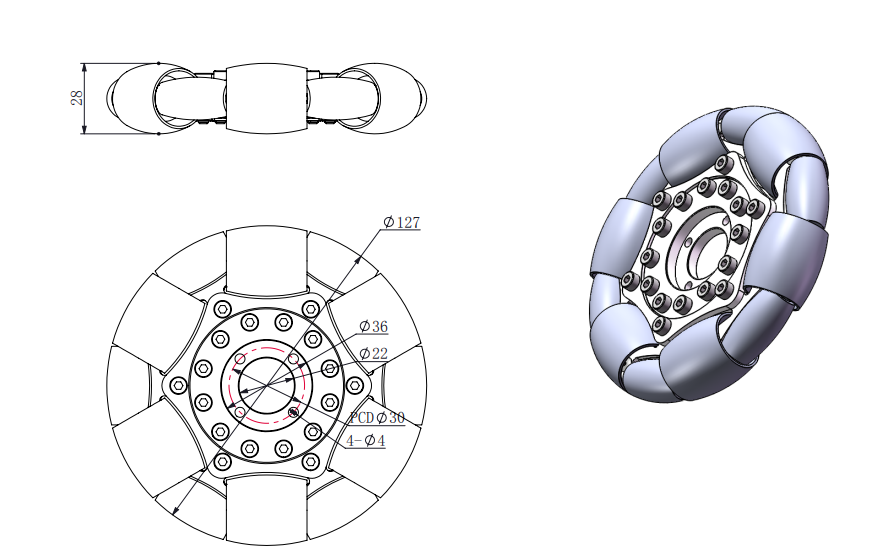

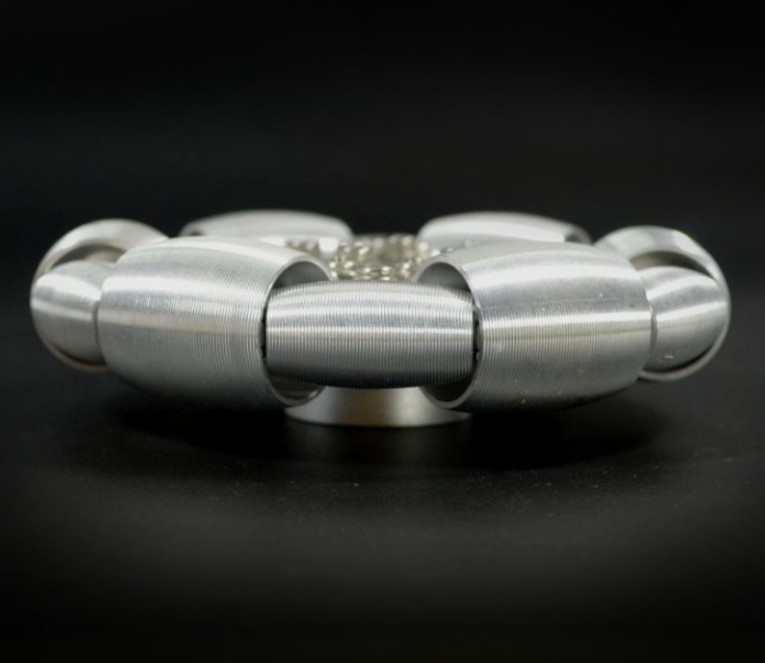

127mm Aluminum Single Omni wheel for Ball Balance Ballbot 14210 as below:

What are the advantages and disadvantages of the Omni wheel?

The advantages of the Mecanum wheel and the omnidirectional wheel are flexibility and convenience, and the disadvantage is expensive. The omnidirectional wheel, as the name suggests,

 can move in any direction, at any angle, and in any direction. mecanum wheel these rollers having an axis of rotation at 45° to the plane parallel to the axis of rotation of the wheel.
