Product Description
| Product Name | SF8-16M 440C Stainless Steel Axial Thrust Ball Bearing 8x16x5mm SSF8-16M |
| Brand | Neutral |
| Model No | SF8-16M |
| Sizes(mm) | 8x16x5mm |
| Material | AISI440C stainless steel washers+ 304 stainless steel cage |
| Sealed Type | Open |
| Precision | P0, P6, P5 |
| Grade | ABEC-1 |
| Used | SF8-16M 440C Stainless Steel Axial Thrust Ball Bearing 8x16x5mm SSF8-16M |
| Packing | Individual plastic bag |
| Shipping Method | By air or by sea |

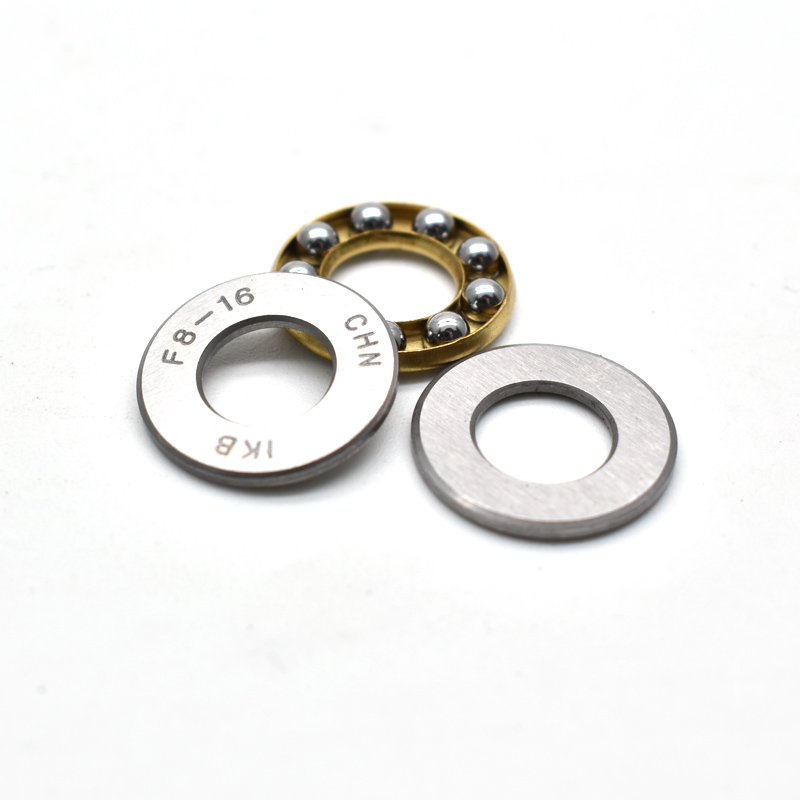

Detailed Images

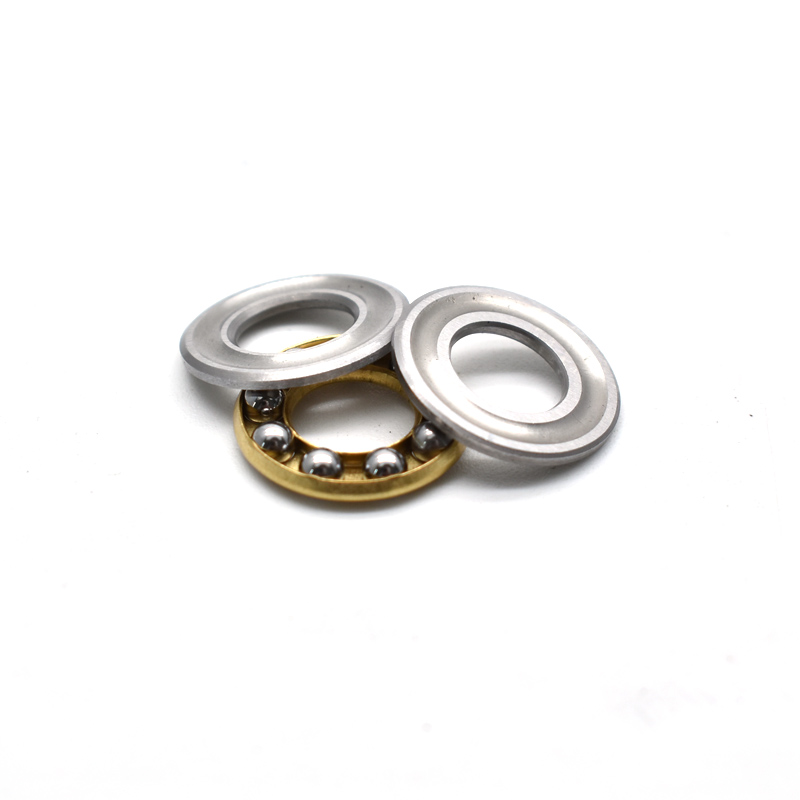

SF8-16M 440C Stainless Steel Axial Thrust Ball Bearing 8x16x5mm SSF8-16M
Item: SF8-16M
Type: Stainless steel thrust bearing
Washer Material: SUS/AISI 440C Stainless Steel
Cage Material: 304 stainless steel
Lubrication: Dry/ Oil
Size: 8x16x5mm
Inner Diameter: 8mm
Outer Diameter: 16mm
Width: 5mm
The F Metric Stainless Steel Thrust Ball Bearing Series is a high precision line of miniature thrust ball bearings that can accommodate axial loads in a single direction. The bearings in this series are designed with flat raceways and are suitable for applications with smaller load and speed requirements than that of the FM miniature thrust bearing series.
These bearings are available with bore sizes as small as 2mm (0.0787 inches) and as large as 10mm (0.3937 inches), and with the race ODs ranging from 6mm (0.2362 inches) to 18mm (0.7087 inches). popular model SF8-14M, SF9-20M, SF8-19M, SF10-18M, SF8-16M... thrust bearings
Thrust bearing washers made of AISI 440C stainless steel bearings, cage is 304 stainless steel material resist corrosion. It is an axial bearing that permits rotation between parts. Thrust bearings support the axial thrust of both horizontal and vertical shafts.
Related Product:
These bearings are typically manufactured with SAE 52100 chrome steel washers, cage can be use brass/cooper material, or 304 stainless steel material.
